在解析WAPPUSH over SMS时，看了一下
Android里SMS接收的流程，并按照自己需要的流程记录，其他分支的详细处理并未讲述。PDU数据的encode/decode也并未在本文中进行解析，有兴趣的读者可以到相应的代码处自己解读一下。
Android中，RIL用RILReciever接收SMS pdu，并根据不同的信息类型用相应函数来处理。因
手机制式的差异，用GsmSmsDispatcher或CdmaSmsDispatcher来做各自的消息处理并分发。最后的分发是通过发送相应的Broadcast，所以，对感兴趣的消息处理，可以
注册Receiver来监听相应的Broadcast，实现自己的SMS/MMS/Wap push，以及其他类型消息的接收处理。
RIL构造函数中，Receiver的初始化[在文件RIL.
java中]
[
java]
mReceiver = newRILReceiver();
mReceiverThread =new Thread(mReceiver, "RILReceiver");
mReceiverThread.start();

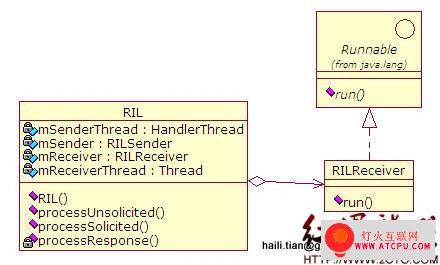

其中的类型
mReceiver: RILReceiver
mReceiverThread: Thread
RILReceiver实现了Runnable
关注RILReceiver线程的实现[在RILReceiver::run()中]
[
java] public void run() {
int retryCount= 0;
try {for (;;) {
LocalSockets = null;
LocalSocketAddress l;
try {
s = newLocalSocket();
l = newLocalSocketAddress(SOCKET_NAME_RIL,
LocalSocketAddress.Namespace.RESERVED);
s.connect(l);
} catch (IOException ex){
// 。。。
}
retryCount= 0;
mSocket =s;
int length= 0;
try {
InputStreamis = mSocket.getInputStream();
for(;;) {
Parcel p;
length = readRilMessage(is, buffer);
if(length < 0) {
// End-of-stream reached
break;
}
p =Parcel.obtain();
p.unmarshall(buffer, 0, length);
p.setDataPosition(0);
processResponse(p);
p.recycle();
}
} catch(
java.io.IOException ex) {
// …
} catch(Throwable tr) {
// …
}
// …
}} catch(Throwable tr) {
Log.e(LOG_TAG,"Uncaught exception", tr);
}
}
public void run() {
int retryCount= 0;
try {for (;;) {
LocalSockets = null;
LocalSocketAddress l;
try {
s = newLocalSocket();
l = newLocalSocketAddress(SOCKET_NAME_RIL,
LocalSocketAddress.Namespace.RESERVED);
s.connect(l);
} catch (IOException ex){
// 。。。
}
retryCount= 0;
mSocket =s;
int length= 0;
try {
InputStreamis = mSocket.getInputStream();
for(;;) {
Parcel p;
length = readRilMessage(is, buffer);
if(length < 0) {
// End-of-stream reached
break;
}
p =Parcel.obtain();
p.unmarshall(buffer, 0, length);
p.setDataPosition(0);
processResponse(p);
p.recycle();
}
} catch(
java.io.IOException ex) {
// …
} catch(Throwable tr) {
// …
}
// …
}} catch(Throwable tr) {
Log.e(LOG_TAG,"Uncaught exception", tr);
}
}
RILReceiver线程不停的监听本地Socket，读到数据之后在processResponse()[Line#37]中处理。
[
java] private void processResponse (Parcel p) {
int type;
type = p.readInt();
if(type == RESPONSE_UNSOLICITED) {
processUnsolicited (p);
}else if (type == RESPONSE_SOLICITED) {
processSolicited (p);
}
releaseWakeLockIfDone();
}
private void processResponse (Parcel p) {
int type;
type = p.readInt();
if(type == RESPONSE_UNSOLICITED) {
processUnsolicited (p);
}else if (type == RESPONSE_SOLICITED) {
processSolicited (p);
}
releaseWakeLockIfDone();
}
如果类型属于Unsolicited消息，则在processUnsolicited()中处理。收到的短信是属于Unsolicited信息，看它的实现。
processUnsolicited()中很长的switch… case语句中对收到短信的处理在case RIL_UNSOL_RESPONSE_NEW_SMS：
[
java] SmsMessage sms;
sms = SmsMessage.newFromCMT(a);
if (mSMSRegistrant != null) {
mSMSRegistrant.notifyRegistrant(new AsyncResult(null, sms, null));
}
SmsMessage sms;
sms = SmsMessage.newFromCMT(a);
if (mSMSRegistrant != null) {
mSMSRegistrant.notifyRegistrant(new AsyncResult(null, sms, null));
}

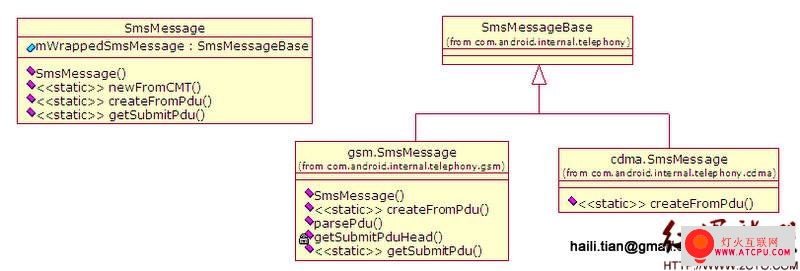

这里的SmsMessage是
Android.telephony.SmsMessage。newFromCMT()中会根据电话类型（GSM/CDMA）选择具体的SmsMessage进行封装（因为Rational Rose中，同一工程中，不同包内的类也不允许同名，com.
Android.
internal.telephony.gsm.SmsMessage用gsm.SmsMessage代替；com.
Android.internal.telephony.cdma.SmsMessage用cdma.SmsMessage代替。实际类型都是SmsMessage）。

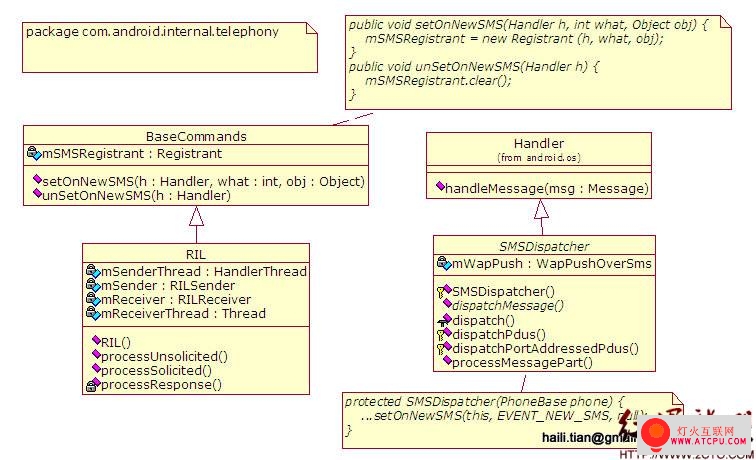

mSMSRegistrant是RIL父类的成员。通过setOnNewSMS()/unSetOnNewSMS()设置和取消设置。SMSDispatcher的构造函数中注册了SMS的Registrant
mCm.setOnNewSMS(this, EVENT_NEW_SMS, null);
所以，调用mSMSRegistrant.notifyRegistrant(newAsyncResult(null, sms, null))之后，执行的是SMSDispatcher中Handler在handleMessage()中对EVENT_NEW_SMS的处理：
[
java] SmsMessage sms;
ar = (AsyncResult) msg.obj;
if (ar.exception != null) {
Log.e(TAG, "Exception processing incoming SMS. Exception:" +ar.exception);
return;
}
sms = (SmsMessage) ar.result;
try {
int result = dispatchMessage(sms.mWrappedSmsMessage);
if (result != Activity.RESULT_OK) {
// RESULT_OK means thatmessage was broadcast for app(s) to handle.
// Any other result, weshould ack here.
boolean handled = (result== Intents.RESULT_SMS_HANDLED);
notifyAndAcknowledgeLastIncomingSms(handled, result, null);
}
} catch (RuntimeException ex) {
Log.e(TAG, "Exception dispatching message", ex);
notifyAndAcknowledgeLastIncomingSms(false,Intents.RESULT_SMS_GENERIC_ERROR, null);
}
SmsMessage sms;
ar = (AsyncResult) msg.obj;
if (ar.exception != null) {
Log.e(TAG, "Exception processing incoming SMS. Exception:" +ar.exception);
return;
}
sms = (SmsMessage) ar.result;
try {
int result = dispatchMessage(sms.mWrappedSmsMessage);
if (result != Activity.RESULT_OK) {
// RESULT_OK means thatmessage was broadcast for app(s) to handle.
// Any other result, weshould ack here.
boolean handled = (result== Intents.RESULT_SMS_HANDLED);
notifyAndAcknowledgeLastIncomingSms(handled, result, null);
}
} catch (RuntimeException ex) {
Log.e(TAG, "Exception dispatching message", ex);
notifyAndAcknowledgeLastIncomingSms(false,Intents.RESULT_SMS_GENERIC_ERROR, null);
}
SMSDispatcher是一个abstract的类，dispatchMessage()的具体实现在GsmSMSDispatcher或CdmaSMSDispatcher中。
GsmSMSDispatcher::dispatchMessage()中，会对Class 0类型的短信，有目标端口的短信，和长短信做处理。
目标端口为WAPPUSH的信息，则调用mWapPush.dispatchWapPdu(sms.getUserData(),pdus)让WAPPUSH来处理；其它未知的端口，则用“sms://localhost:<port>”指定端口。
对长短信，调用processMessagePart()进行组合处理。
1) 有目标端口且目标端口是WAP PUSH(SmsHeader.PORT_WAP_PUSH)的信息，用WapPushOverSms::dispatchWapPdu()来处理：
根据不同的contentType：
-> dispatchWapPdu_PushCO();
-> dispatchWapPdu_MMS();
-> dispatchWapPdu_default()
2) 有目标地址且目标端口不是WAP PUSH的信息，在SMSDispatcher::dispatchPortAddressedPdus()中处理：
Uri uri =Uri.parse("sms://localhost:" + port);
Intent intent= new Intent(Intents.DATA_SMS_RECEIVED_ACTION, uri);
intent.putExtra("pdus", pdus);
dispatch(intent, "
Android.permission.RECEIVE_SMS");
3) 通常的无目标地址的信息（普通短信），在SMSDispatcher::dispatchPdus()中处理：
Intent intent= new Intent(Intents.SMS_RECEIVED_ACTION);
intent.putExtra("pdus", pdus);
dispatch(intent, "
Android.permission.RECEIVE_SMS");
